Turf Fan & Cooling
- Increase air circulation
- Prevent heat stress
- Decrease risk of turfgrass diseases
Request a free quotation and advice on our products by filling in the form.
- Enter your details
- Select the products you are interested in and/or would like advice on
- Select a purchase option
Not sure what solution is right for you? Please give a precise description of your situation and budget in the comment area, so that our experts can give you comprehensive advice and recommendations.
After submitting your inquiry, we aim to respond within two working days. In case you have an urgent question, please call us on +31 795933801.
Improve micro climate

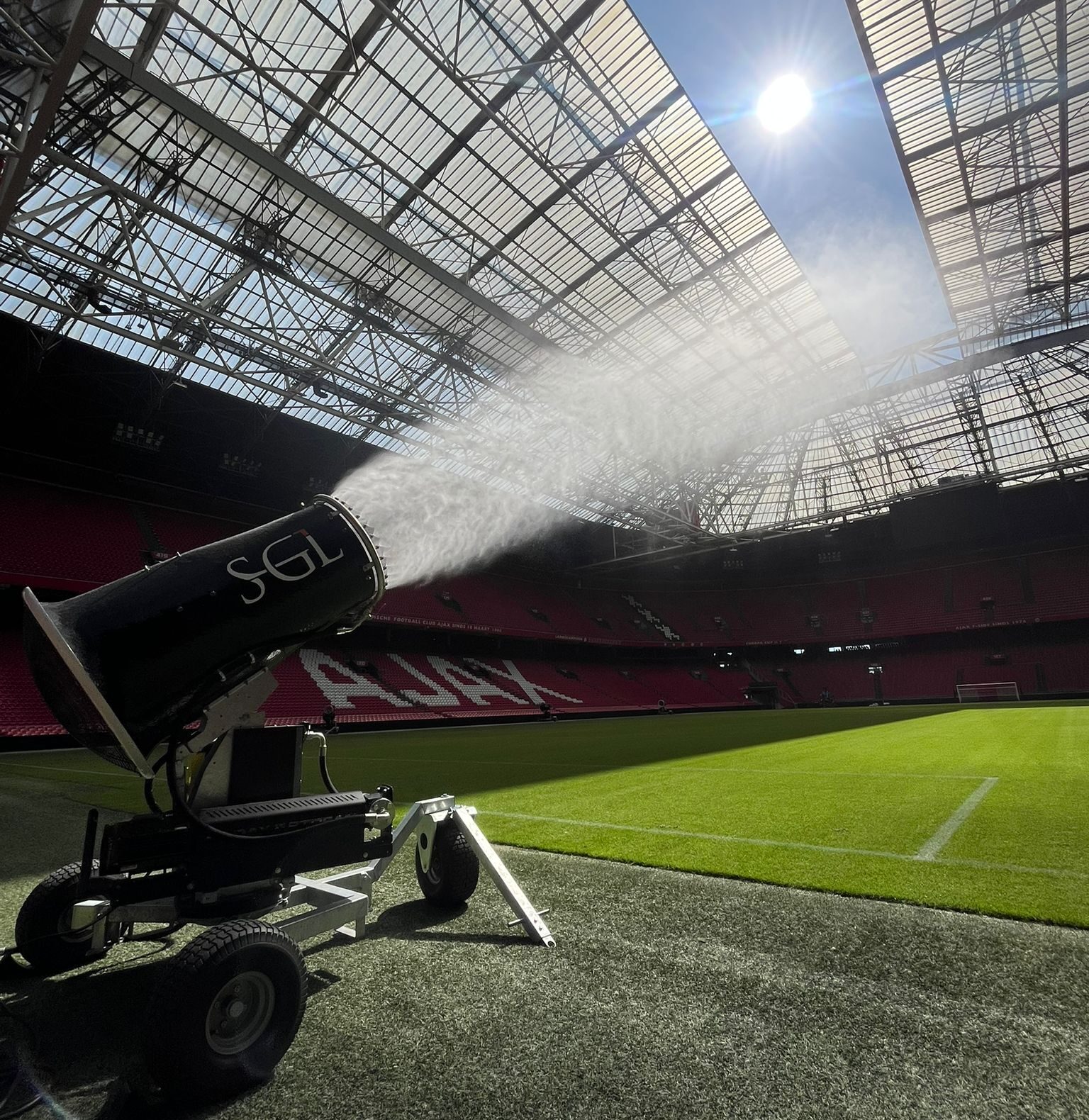

Often in sport venues, there is a lack of air circulation. This results in unfavourable conditions for growing turfgrass, amongst which a higher disease pressure and risk of diseases. This turf fan can be extended with a cooling option, to lower temperatures during the high temperatures in order to prevent plant stress and grass diseases. With the turf fan you control the air circulation and cooling seperately or combined to create perfect pitch circumstances.
Adiabatic cooling
When using the cooling on the turf fan, it cools the surface through the principle of adiabatic cooling, also known as evaporative cooling. It is a method of cooling air through the evaporation of water. The Turf Cooling system sprays a consistent stream of mist which is being carried 50 meters across the surface by the fan. The mist abstract the heat energy from the air above the surface, making the mist evaporate before it touches the grass. This results in a cool and dry playing surface. This cooling process can lower the temperatures with an average of 7-8 degrees Celsius, depending on the outside temperatures and natural wind.
Data driven technology
The SGL Portal is the online management tool for all SGL products. It is where all data of the products and monitoring tools is displayed, as well as where data calculations and analyses are done in the background, to provide grounds managers with the information to make proactive decisions. On the Portal, you’ll find a 9-day advice for when the fan and when the cooling mechanism is recommended to be used. When and how often to use the cooling mechanism of the TC50 depends, amongst others, on the air temperature and the humidity. The Cooling Advice is calculated by the turfgrass stress algorithm. The algorithm determines the predicted heat stress for your playing surface, based on local weather forecasts and data from the TurfPod. This will give you specific insight on when and how long it is recommended to use the cooling mechanism.
TC50 specifications
| Machine dimensions | L 1.55 m x W 1.6 m x H 2.35 m |
| Machine dimensions incl. wheel set | L 2.35 m x W 2.08 m x H 2.38 m |
| Weight | 615 kg |
| Horizontal rotation | 270 degrees |
| Throwing distance | 50 meters |
| Water pressure and consumption | 20 Bar, approx. 540 L/h |
| kW consumption fan / boosterpump / oscillator | 7.5 kW / 3 kW / 0.09 kW |
| Water connection | 1’’ BSP male |
| Electrical plug | 63 A (3P+N+E) 400V |
